Powder series

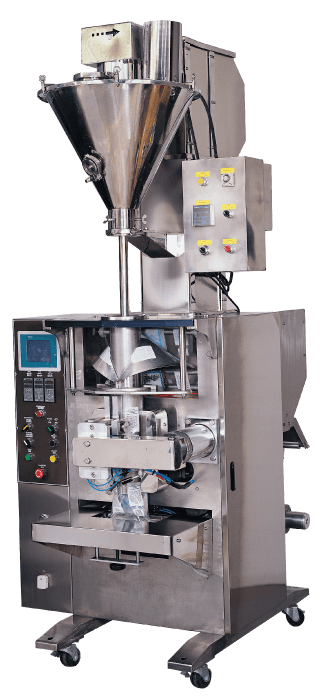

SP-260TA

Volumetric System Automatic Auger Filler

powder-packaging-machine, liquid-packaging-machine
  • Powder series

    Suited for filling food, pharmaceutical chemicals, agricultural chemicals. 35 - 65 angle of repose or particle allowed break, and other non-free flowing powders.

  • Applicable Packaging Products
    1. Servo motor - Mitsubishi.

    2. Touch screen - HI-Tech.

    3. Employs German photocell sensor for accurate control of bag length.

    4. Employs Japanese thermostat for fast heating and superior performance.

    5. The parts through which powders flow are manufactured from stainless or Teflon, conform to sanitation standards.

    6. Auger meter filling. Packaging weight is steady.

powder-packaging-machine, liquid-packaging-machine

P

r

o

d

u

c

t

s

Specifications

Model SP-260TA
Bag Shaper Pillow-Seal
Film Width 200 - 450 mm
Bag Width 100 - 225 mm
Bag Lengh 100 - 290 mm
Filling Range 5 - 30 bags/min
Filling Speed 10 - 2000 gram
Accuracy ± 1 - 2 %
Power Source AC 220V 380V, 50/60Hz, 3 Phase
Power Consumption 3HP, 1.125 KW
Machine Dimensions 1200x1100x2700mm
Machine Weight 780 kgs

* All specifications are subject to change without prior notice.
