PRODUCTS

Powder particle series

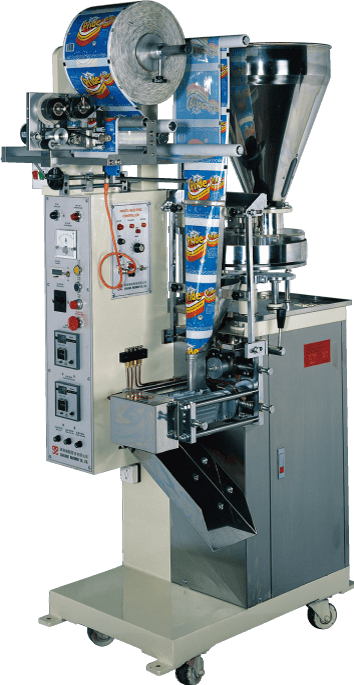

SP-202 / SP-203 / SP-204

Vertical Form-Fill-Seal Machine for Powder / Granule

powder-packaging-machine, liquid-packaging-machine
  • Applicable Packaging Products

    For packaging powder or granulated products such as coffee, medicine, flowers, tea leaves, fungus, peanuts, sugar, salt, etc.

  • 產品特性
    1. The machine is ideal for packaging powder and granulated products.

    2. Employs German photocell sensor for accurate control of bag length.

    3. Employs Japanese thermostat for fast heating and superior performance.

    4. The machine structure conforms to sanitation standards.

    5. Convenient, fast adjustment to suit various bag lengths.

    6. Fully automatic operation provides high effciency and high productivity.

    7. Variable packaging speed, ranging from 30 - 60 bags per minute.

powder-packaging-machine, liquid-packaging-machine

P

r

o

d

u

c

t

s

Specifications

Model SP-202B SP-203B SP-204B
Bag Shaper Pillow-Seal 3-Side 4-Side
Film Width 120 - 260 mm
Bag Width 60 - 130 mm
Bag Length 80 - 180 mm
Packaging Speed 30 - 60 bags/min
Volume Range 100 g
Hopper Capacity 30 L
Power Source AC 110V 220V, 50/60Hz
Power Consumption 1.5 KW
Machine Dimensions 900x700x1750mm
Case Dimensions 1000x820x1900mm
Machine Weight 350 kgs
Shipping Weight 480 kgs

* All specifications are subject to change without prior notice.
