Powder particle series

SP-202D / 203D

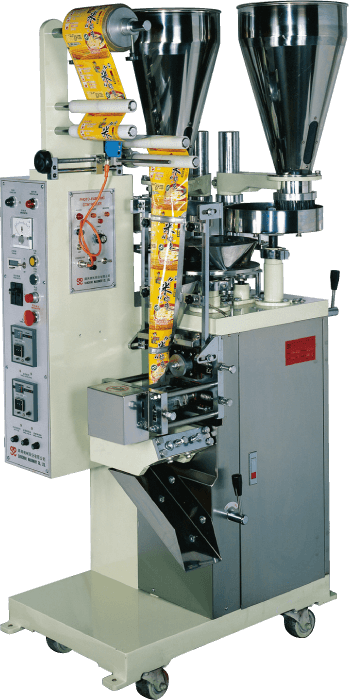

Vertical Form-Fill-Seal Machine for Powder / Granule

powder-packaging-machine, liquid-packaging-machine

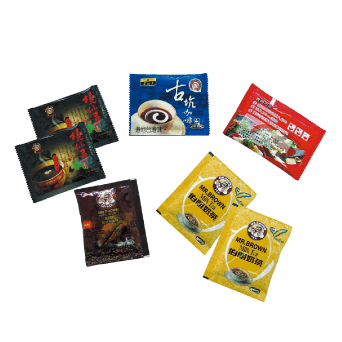

  • Applicable Packaging Products

    For packaging powder or granulated products such as coffee, condiment, dry vegetable. Two products can be metered separately mixed togrther and then packaged.

  • Features
    1. The machine is ideal for packaging powder and granulated products.

    2. Employs German photocell sensor for accurate control of bag length.

    3. Employs Japanese thermostat for fast heating and superior performance.

    4. The machine structure conforms to sanitation standards.

    5. Convenient, fast adjustment to suit various bag lengths.

    6. Fully automatic operation provides high effciency and high productivity.

    7. Variable packaging speed, ranging from 30 - 60 bags per minute.

powder-packaging-machine, liquid-packaging-machine

P

r

o

d

u

c

t

s

Specifications

Model SP-202D SP-203D
Bag Shaper Pillow-Seal 3-Side
Film Width 60 - 160 mm
Bag Width 30 - 80 mm
Bag Length 50 - 120 mm
Packaging Speed 30 - 60 bags/min
Volume Range 30 g
Hopper Capacity 20 L
Power Source AC 110V 220V, 50/60Hz, 1 Phase
Power Consumption 1.35 KW
Machine Dimensions 900x600x1750mm
Case Dimensions 1000x700x1900mm
Machine Weight 320 kgs
Shipping Weight 440 kgs

* All specifications are subject to change without prior notice.
