Solid series

SP-202C

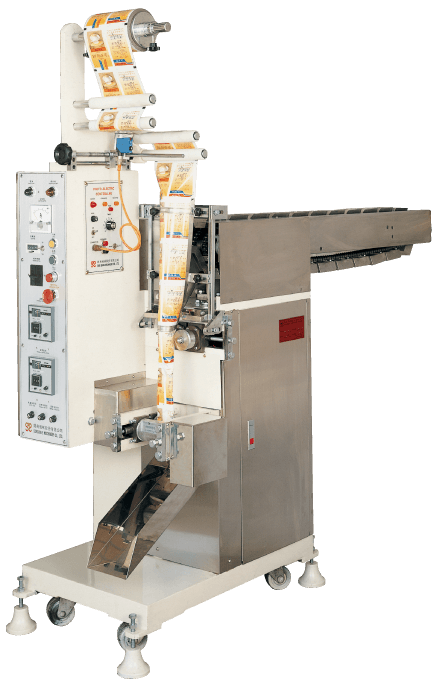

Vertical Form-Fill-Seal Machine with Infeed Conveyor

powder-packaging-machine, liquid-packaging-machine
  • Applicable Packaging Products

    For packaging irregular products. such as brush, medical devices, bolts, nuts, hardware, etc.

  • Features
    1. This machine is ideal for packaging irregular solid products.

    2. Built with material infeed conveyor.

    3. Employs German photocell sensor for accurate control of bag length.

    4. Employs Japanese thermostat for fast heating and superior performance.

    5. Convenient, fast adjustment to suit various bag lengths and widths.

    6. Variable packaging speed, ranging from 40 - 80 bags per minute.

powder-packaging-machine, liquid-packaging-machine

P

r

o

d

u

c

t

s

Specifications

Model SP-202C
Bag Shaper Pillow-Side
Film Width 50 - 160 mm
Bag Width 25 - 80 mm
Bag Length 50 - 120 mm
Packaging Speed 40 - 80 bags/min
Power Source AC 110V 220V, 50/60Hz, 1 Phase
Power Consumption 1.35 KW
Machine Dimensions 1650x600x1750mm
Case Dimensions 1750x700x1900mm
Machine Weight 350 kgs
Shipping Weight 480 kgs

* All specifications are subject to change without prior notice.
