PRODUCTS

Liquid series

SP-202P / SP-203P

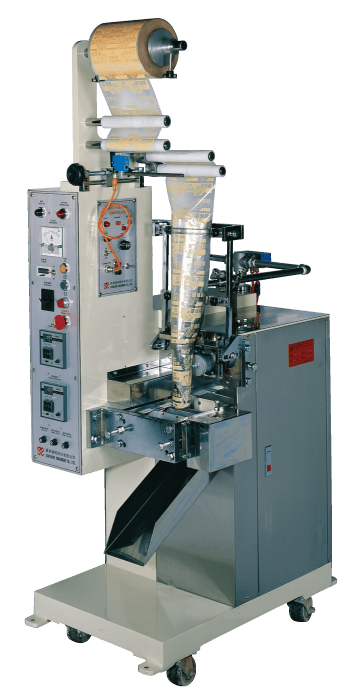

Vertical Form-Fill-Seal Machine for Liquid

powder-packaging-machine, liquid-packaging-machine
  • Applicable Packaging Products

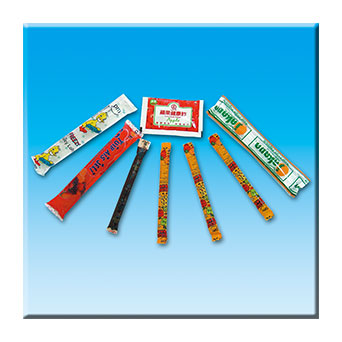

    For packaging liquid and paste products. such as black tea, ketchup, water, floor wax, etc.

  • Features
    1. This machine is ideal for packaging various liquid products.

    2. Employs German photocell sensor for accurate control of bag length.

    3. Employs Japanese thermostat for fast heating and superior performance.

    4. The parts through which liquid flow are manufactured from stainless steel or Teflon, conform to sanitation standards.

    5. Convenient, fast adjustment to suit various bag lengths.

    6. Accurate volume filling achieved by precise piston pump.

powder-packaging-machine, liquid-packaging-machine

P

r

o

d

u

c

t

s

Specifications

Model SP-202P SP-203P
Bag Shaper Pillow-Side 3-Side
Film Width 60 - 160 mm
Bag Width 30 - 80 mm
Bag Length 50 - 120 mm
Packaging Speed 40 - 80 bags/min
Volume Range 50 - 200 ㏄
Power Source AC 110V 220V, 50/60Hz
Power Consumption 1.35 KW
Machine Dimensions 1000x600x1750mm
Case Dimensions 1100x700x1900mm
Machine Weight 320 kgs
Shipping Weight 430 kgs

* All specifications are subject to change without prior notice.
