PRODUCTS

粉末顆粒系列

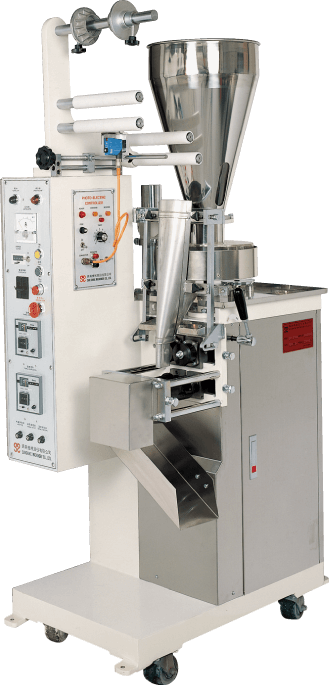

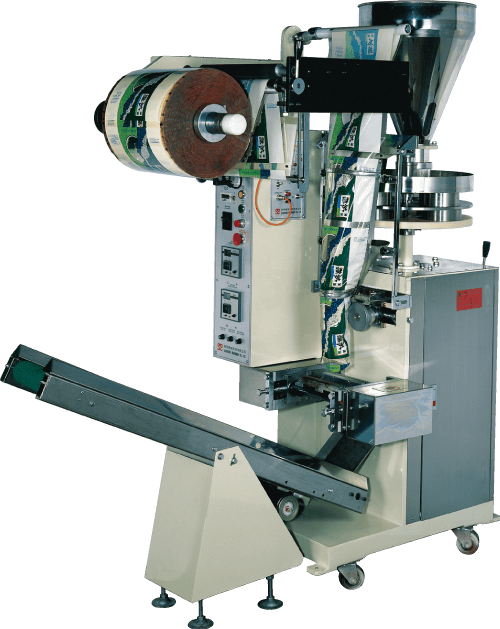

SP-202 / SP-203 / SP-204

Vertical Form-Fill-Seal Machine for Powder / Granule

powder-packaging-machine, liquid-packaging-machine
powder-packaging-machine, liquid-packaging-machine

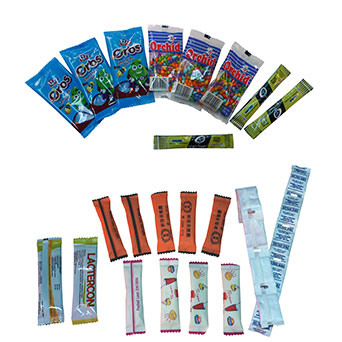

  • Applicable Packaging Products

    For packaging powder or granulated products such as coffee, medicine, flowers, tea leaves, fungus, peanuts, sugar, salt, etc.

  • Features
    1. The machine is ideal for packaging powder and granulated products.

    2. Employs German photocell sensor for accurate control of bag length.

    3. Employs Japanese thermostat for fast heating and superior performance.

    4. The machine structure conforms to sanitation standards.

    5. Convenient, fast adjustment to suit various bag lengths.

    6. Fully automatic operation provides high effciency and high productivity.

    7. Variable packaging speed, ranging from 40 - 80 bags per minute.

powder-packaging-machine, liquid-packaging-machine

P

r

o

d

u

c

t

s

Specifications

Model SP-202 SP-203 SP-204
Bag Shaper Pillow-Seal 3-Side 4-Side
Film Width 60 - 160 mm
Bag Width 30 - 80 mm
Bag Length 50 - 120 mm
Packaging Speed 40 - 80 bags/min
Volume Range 30 g
Hopper Capacity 20 L
Power Source AC 110V 220V, 50/60Hz, 1 Phase
Power Consumption 1.35 KW
Machine Dimensions 900x600x1750mm
Case Dimensions 1000x700x1900mm
Machine Weight 300 kgs
Shipping Weight 420 kgs

* All specifications are subject to change without prior notice.
